Immortal T antenna mount for QAV-S & Source One quadcopters

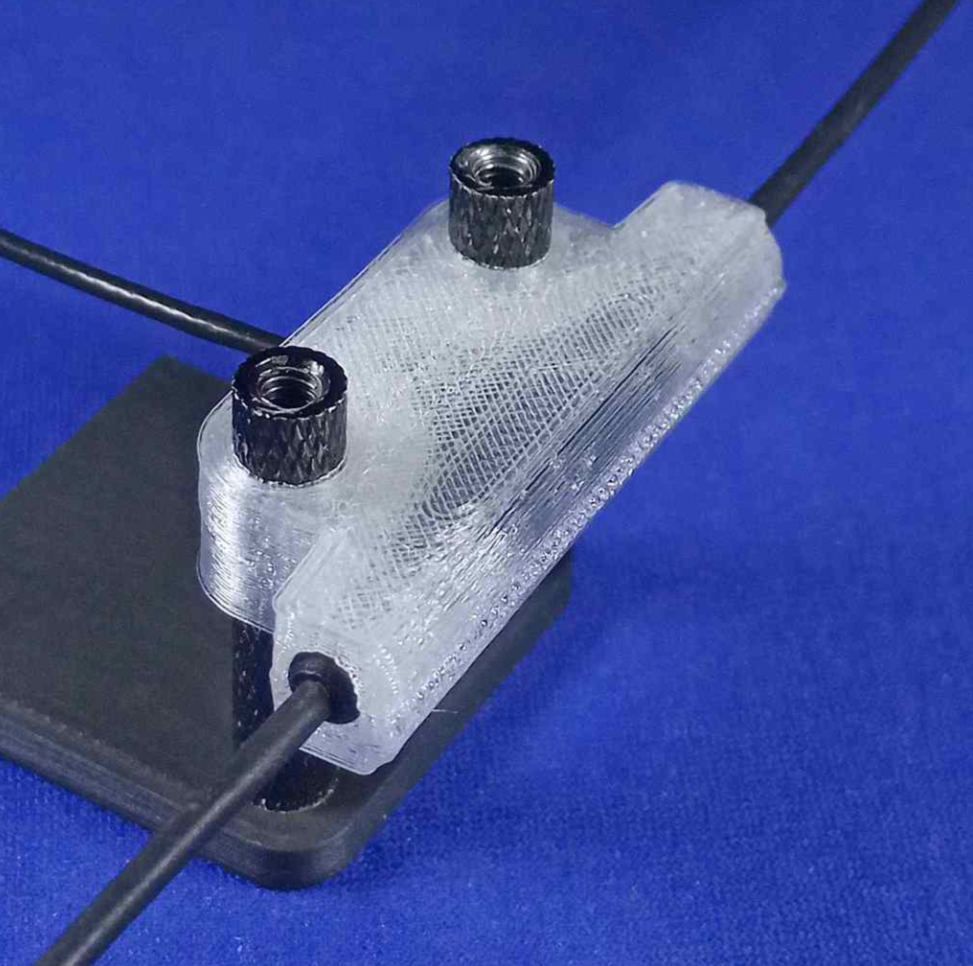

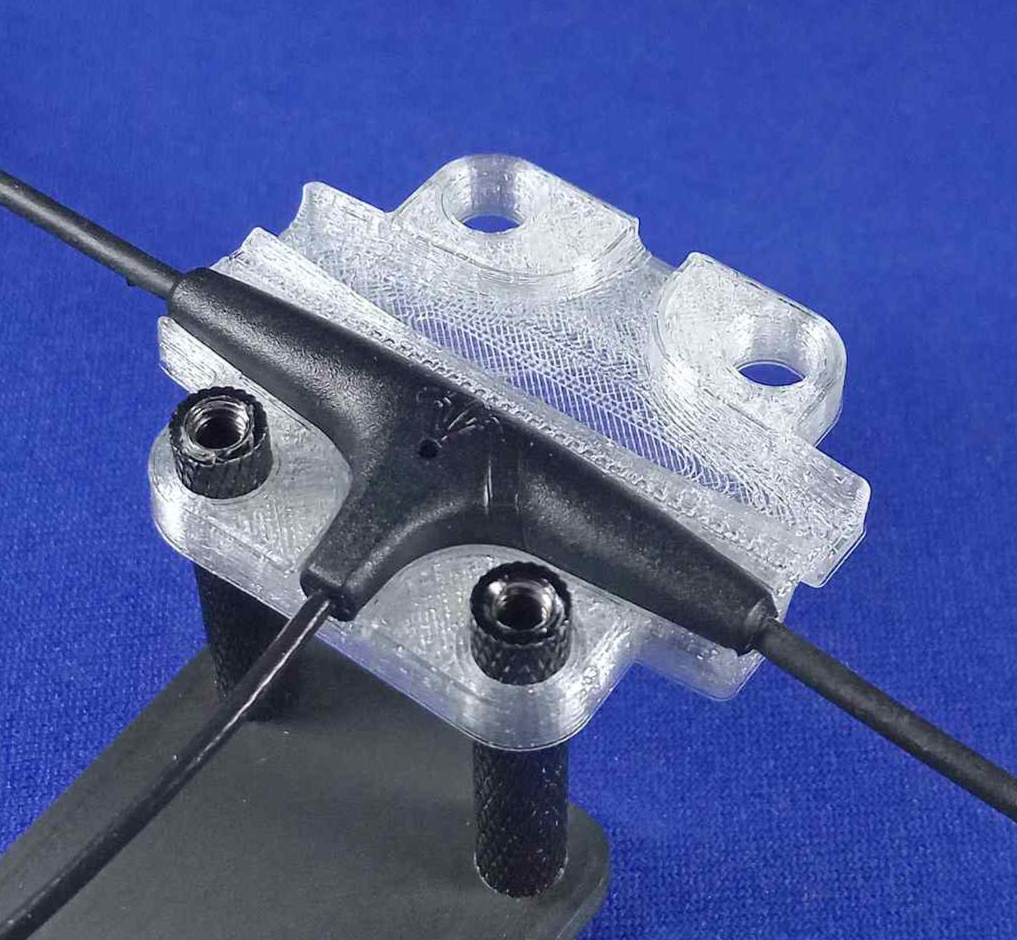

This is a folding TPU holder for the TBS fullsize Immortal-T antenna to go on the QAV-S quadcopter.

Print in TPU at 0.2mm layer height, no support needed.

The mount holes are 19mm apart (center-to-center), and 4.9mm diameter which is on purpose so the TPU grips the 5mm standoffss

I have added extra versions for the Source One quads with these measurements:
Source One V3 (5mm diameter standoffs 30.5mm center to center)
Source One V4 / HD / Apex (5mm diameter standoffs 23.5mm center to center)
